THE FLEET

Nineteen machines the ITAD industry didn't have.

Every system is diskless by design, air-gap capable and software-agnostic — bring your own licensed wiping suite or deploy with WipeOS. Built to order in 30–90 days in Virginia, USA.

EXPLORE THE FLEET
UWC-280 — Universal Wiper Cart 280UWC-480 — Universal Wiper Cart 480NFC-SXM4 — A100 SXM4 Firmware Intake Station
DRIVE SANITIZATION
01 / 19
UWC-280
280 drives at once
Universal Wiper Cart 280
960
drives per parallel cycle
Up to 8×
fewer cycles than the next-best commercial system
< 5 min
full NVMe batch, M.2 or U.2
300–450
phones per 8-hour shift
What the record badges mean
SOFTWARE-AGNOSTIC

Bring your own suite, or deploy with WipeOS.

Apex machines are software-agnostic. Carts PXE-boot your licensed wiping environment — or boot a standalone USB at the front-panel port for fully isolated, no-internet operation.

POWERED BY
WipeOS
DRIVE SANITIZATION

Drive Sanitization

Bulk SATA/SAS carts from 280 to 960 drives per cycle, plus dedicated M.2 and U.2 NVMe stations. Your PXE wipe suite performs the sanitization and issues the certificate.

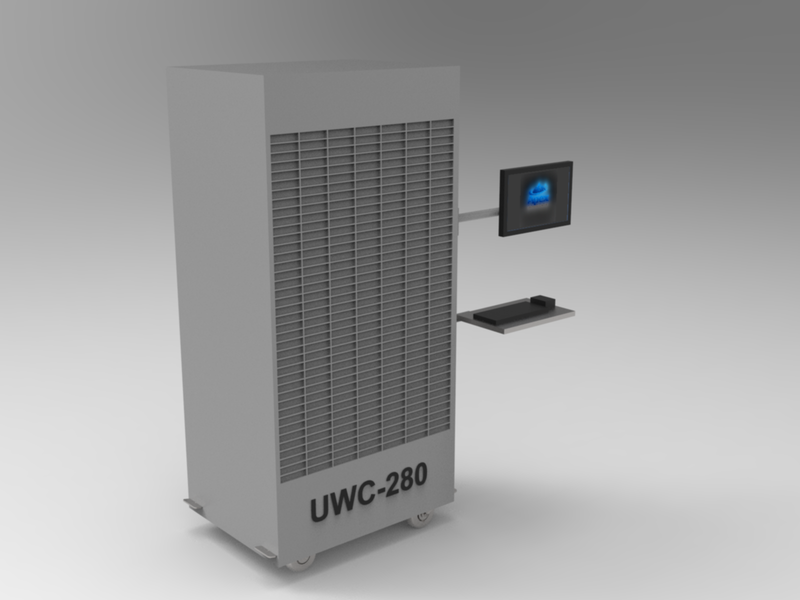

UWC-280 — Universal Wiper Cart 280
UWC-280
RECORD BY YOUR WIPE SUITE

Universal Wiper Cart 280

Roll-anywhere mobile drive sanitization — up to 280 drives, through any standard doorway.

280 drives at once
32" W — doorway-portable
1 × 30A / 208V · ~4,100 W
SAS3 full-bandwidth fabric
Achieved by your PXE wipe software (WipeOS or 3rd-party): NIST SP 800-88 Rev. 2 — Clear & Purge; aligned to IEEE 2883-2022 · DoD 5220.22-M · NCSC guidance (UK) · ADISA

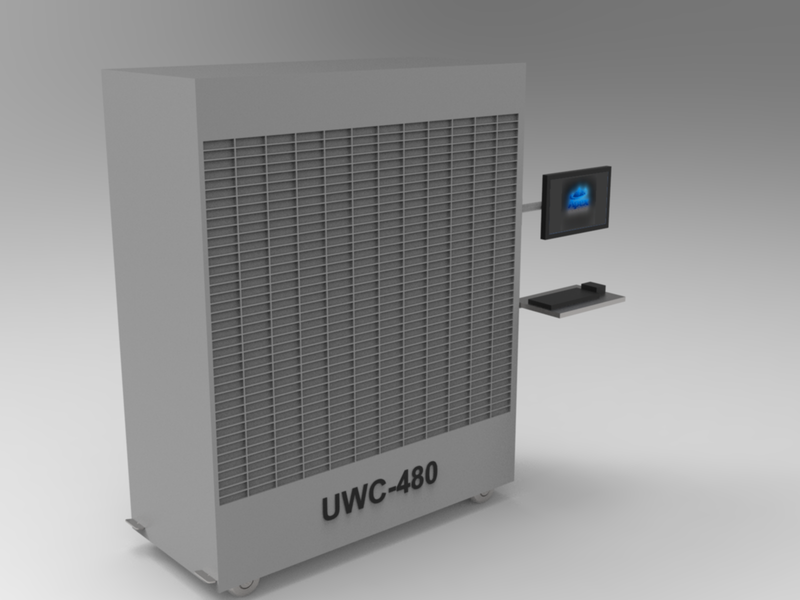

UWC-480 — Universal Wiper Cart 480
UWC-480
RECORD BY YOUR WIPE SUITE

Universal Wiper Cart 480

High-volume fixed wiping station — 480 drives per run in a single footprint.

480 drives at once
54" W × 24" D — fixed floor unit
2 × 30A / 208V · ~7,000 W
2 zones / 4 backplanes
Achieved by your PXE wipe software (WipeOS or 3rd-party): NIST SP 800-88 Rev. 2 — Clear & Purge; aligned to IEEE 2883-2022 · DoD 5220.22-M · NCSC guidance (UK) · ADISA

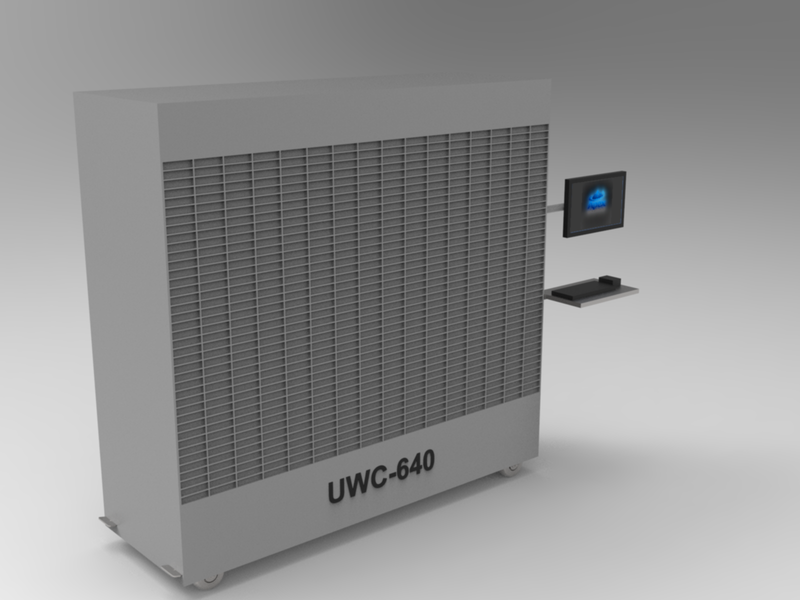

UWC-640 — Universal Wiper Cart 640
UWC-640
RECORD BY YOUR WIPE SUITE

Universal Wiper Cart 640

High-density fixed wiping station — 640 drives sanitized and certified per run.

640 drives at once
70" W × 24" D — fixed floor unit
2 × 30A / 208V · ~8,200 W
3 zones / 4 backplanes
Achieved by your PXE wipe software (WipeOS or 3rd-party): NIST SP 800-88 Rev. 2 — Clear & Purge; aligned to IEEE 2883-2022 · DoD 5220.22-M · NCSC guidance (UK) · ADISA
FLAGSHIP

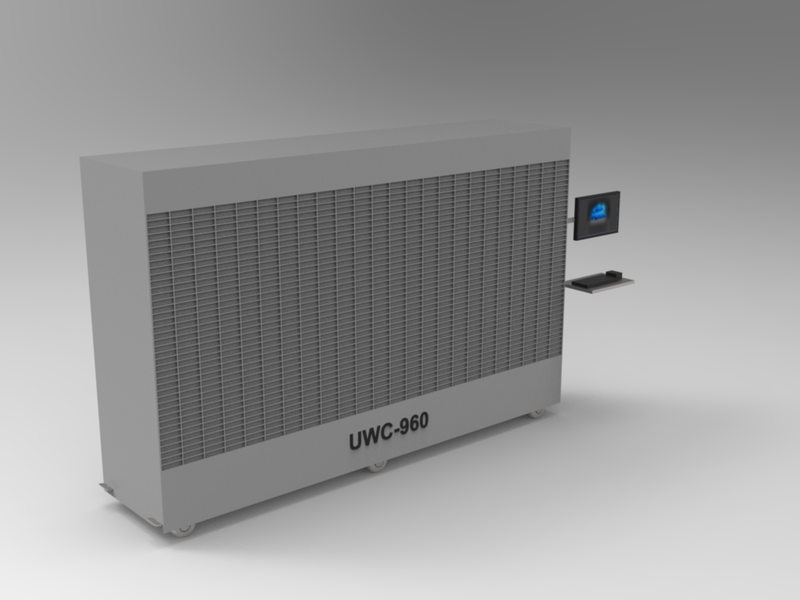

UWC-960 — Universal Wiper Cart 960
UWC-960
RECORD BY YOUR WIPE SUITE

Universal Wiper Cart 960

Maximum-throughput wiping line — 960 drives simultaneously for enterprise-scale ITAD.

960 drives at once
104" W × 24" D — large fixed install
3 × 30A / 208V · ~12,170 W
4 zones / 8 backplanes
Achieved by your PXE wipe software (WipeOS or 3rd-party): NIST SP 800-88 Rev. 2 — Clear & Purge; aligned to IEEE 2883-2022 · DoD 5220.22-M · NCSC guidance (UK) · ADISA

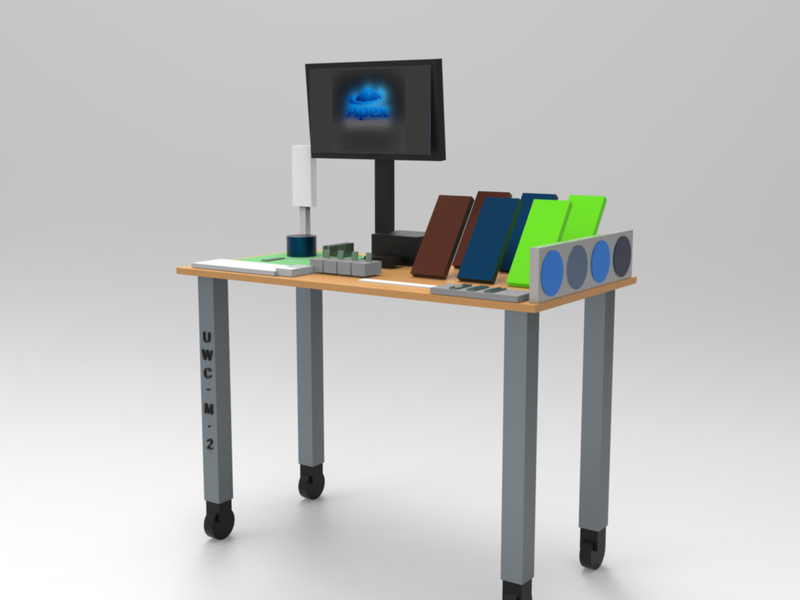

UWC-M.2 — M.2 Drive Wipe Station
UWC-M.2
RECORD BY YOUR WIPE SUITE

M.2 Drive Wipe Station

28 M.2 drives sanitized, verified and certified in under five minutes.

28 M.2 slots (24 NVMe + 4 SATA)
< 5 min full batch
< 60 sec crypto-erase per drive
Threadripper PRO · 128 PCIe Gen5 lanes
Achieved by your PXE wipe software (WipeOS or 3rd-party): NIST SP 800-88 Rev. 2 — Purge (cryptographic erase); aligned to IEEE 2883-2022

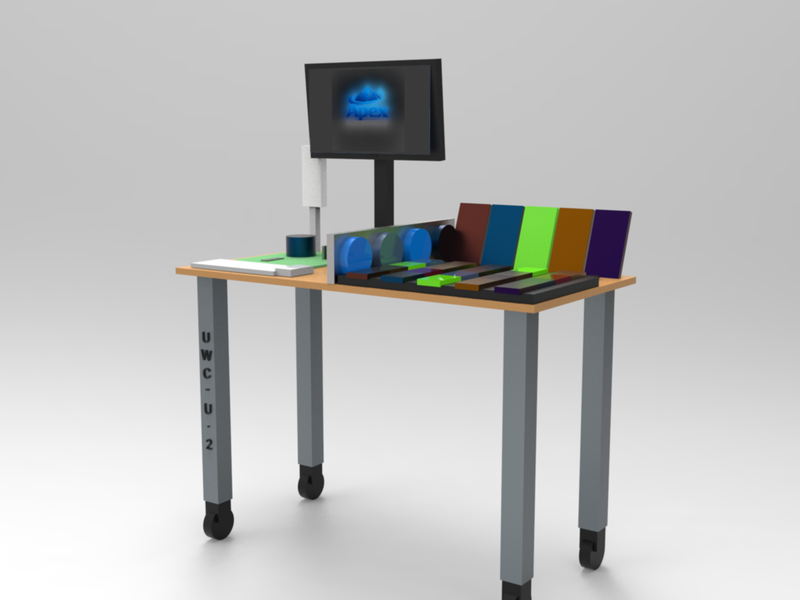

UWC-U.2 — U.2 Enterprise NVMe Wipe Station
UWC-U.2
RECORD BY YOUR WIPE SUITE

U.2 Enterprise NVMe Wipe Station

Purpose-built for datacenter U.2 drives — 20 wiped and certified in under five minutes.

20 enterprise U.2 slots
< 5 min full batch
< 60 sec crypto-erase per drive
Native NVMe via SFF-8639
Achieved by your PXE wipe software (WipeOS or 3rd-party): NIST SP 800-88 Rev. 2 — Purge (cryptographic erase); aligned to IEEE 2883-2022
PLAN THE LINE

Will it fit, and can you power it?

The two questions that stall a purchase order at week six. Both answers are already on the drive-line spec sheet — so here they are, to scale. Every figure below is published, not estimated.

960 BAYS · ONE MACHINE · ONE CYCLE
48 × 20 — every bay drawn
BUILD YOUR LINE
UWC-280
280 drives · 32" W · 1 × 30A
0
UWC-480
480 drives · 54" W × 24" D · 2 × 30A
0
UWC-640
640 drives · 70" W × 24" D · 2 × 30A
0
UWC-960
960 drives · 104" W × 24" D · 3 × 30A
1
Carts
PXE
Preboot eXecution Environment — the cart boots your licensed wiping suite over the network, so it holds no operating system and no disk of its own.
-boot your own suite. Footprint and electrical are published for the drive line; the other machines are quoted individually.
960
drives per cycle
8' 8"
of wall, front elevation
3
× 30A / 208V circuits
12,170
watts at full draw
FLOOR RUN, TO SCALE
104" of machine + a 36" door
960
36" door
All fixed floor units, 24" deep. Only the UWC-280 is doorway-portable if you need to move between rooms.
Site requirements. Several machines need dedicated 208–240 V circuits that most floors do not already have. Apex supplies a Site Requirements sheet covering electrical circuits, receptacle types and heat load — available on request.
ENDPOINT SANITIZATION

Endpoint Sanitization

Fifteen desktops or fifteen laptops of any brand, wiped in one pass. Universal power and PXE boot end the adapter hunt.

UDWC — Universal Desktop Wiping Cart
UDWC
RECORD BY YOUR WIPE SUITE

Universal Desktop Wiping Cart

Fifteen desktops of any brand or form factor — one KVM, one universal cable.

15 desktops at once
Any brand / form factor
IEC C13 universal power cable
One KVM serves all 15 bays
Certificate & chain-of-custody generated by your PXE wipe software (WipeOS or 3rd-party)
ULWC — Universal Laptop Wipe Cart
ULWC
RECORD BY YOUR WIPE SUITE

Universal Laptop Wipe Cart

Fifteen laptops, any brand — auto-sensing power that ends the adapter hunt.

15 laptops at once
Auto tip-ID universal power
USB-C PD + barrel adapters
PXE network wipe boot
Certificate & chain-of-custody generated by your PXE wipe software (WipeOS or 3rd-party)
MOBILE & VoIP RESET

Mobile & VoIP Reset

Phones, tablets and IP handsets — lock-screened, reset and logged. On these machines Apex generates the certificate and the custody record.

UPRC — Universal Phone Reset Cart
UPRC
APEX-GENERATED RECORD

Universal Phone Reset Cart

64 iOS & Android phones per cart — lock-screened, reset, wiped and certified.

64 phones per cart
3–8 min erase per device
300–450 phones per 8-hr shift
Activation Lock + FRP screening
NIST SP 800-88 Rev. 2 — Clear via Apple Configurator 2 / ADB · Activation Lock / FRP verified · per-device certificate by Apex dashboard
UTRC — Universal Tablet Reset Cart
UTRC
APEX-GENERATED RECORD

Universal Tablet Reset Cart

Fifteen iPads & Android tablets — USB-connected, lock-screened, reset and certified.

15 bays per rack
iPad + Android dual platform
Activation Lock + FRP screening
Bay-agnostic — one USB cable per bay
NIST SP 800-88 Rev. 2 — Clear via Apple Configurator 2 / ADB · Activation Lock / FRP verified · per-device certificate by Apex dashboard
UIPRC — Universal Internet Phone Reset Cart
UIPRC
APEX-GENERATED RECORD

Universal Internet Phone Reset Cart

Zero-touch: 40 IP phones auto-identified, factory-flashed and logged.

40 phones per batch
Zero-touch auto provision + reset
5+ phone brands supported
PoE rack-powered
Batch lot record + chain-of-custody by MAC address
SERVER / INFRASTRUCTURE

Server / Infrastructure

Reset the management identity of a rack at a time — BMC, BIOS and boot order, out-of-band and always reachable.

SRC — Server Reset Cart
SRC
APEX-GENERATED RECORD

Server Reset Cart

Reset the management identity of 15 rack servers at once — BMC, BIOS and boot order.

15 servers at once
BMC — iDRAC · iLO · IPMI · Redfish
OOB always-reachable reset
15 retractable tethers
Per-server reset certificate + chain-of-custody & audit log
GPU TESTING

GPU Testing

Burn-in and validation for high-value accelerators, with a certificate tied to every GPU serial.

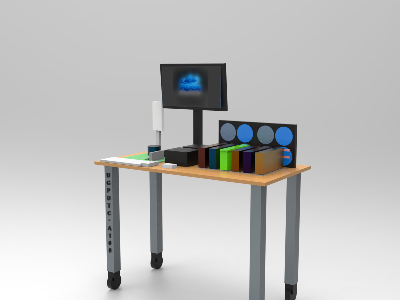

UGPUTC-A100 — Universal GPU Test Cart — A100
UGPUTC-A100
APEX-GENERATED RECORD

Universal GPU Test Cart — A100

Six-card A100 burn-in and validation with a certificate per GPU serial.

6× NVIDIA A100 PCIe 80 GB
< 83 °C throttle threshold
> 95% utilization burn-in
280–300 W per card
Per-card certificate by GPU serial + lot chain-of-custody
UGPUTC-H100 — Universal GPU Test Cart — H100
UGPUTC-H100
APEX-GENERATED RECORD

Universal GPU Test Cart — H100

Six-card H100 burn-in and validation with a certificate per GPU serial.

6× NVIDIA H100 PCIe 80 GB
< 83 °C throttle threshold
> 95% utilization burn-in
330–350 W per card
Per-card certificate by GPU serial + lot chain-of-custody

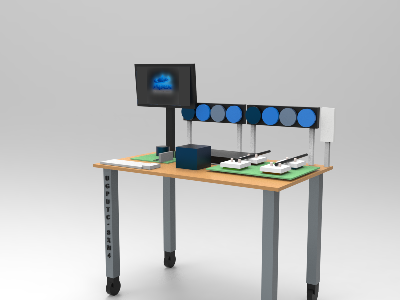

UGPUTC-SXM4 — Universal GPU Test Cart — SXM4
UGPUTC-SXM4
APEX-GENERATED RECORD

Universal GPU Test Cart — SXM4

HGX A100 SXM4 module testing — liquid-cooled, NVLink-verified, certified per module.

HGX A100 4-GPU SXM4 baseboard
< 65 °C liquid target
> 95% utilization, all 4 modules
Liquid cold-plate cooling
Per-module certificate by serial + HGX baseboard serial
UGPUT-WC — Universal GPU Test-Wiping Cart
UGPUT-WC
APEX-GENERATED RECORD

Universal GPU Test-Wiping Cart

Eight GPUs, every NVIDIA family — card-aware testing with a certificate each.

8 GPUs per bench
8 NVIDIA families supported
1-sec live nvidia-smi telemetry
Doubles as PCIe SSD wipe station
Test mode: per-card PDF certificate by GPU serial + lot chain-of-custody (Apex-generated). Wipe mode: certificate issued by your PXE wipe software.
FIRMWARE INTAKE

Firmware Intake

Air-gapped VBIOS flashing with mandatory backup and SHA-256 verified images pulled from your local NAS — never from the internet.

NFC-A100 — A100 PCIe Firmware Intake Station
NFC-A100
APEX-GENERATED RECORD

A100 PCIe Firmware Intake Station

Six A100 cards firmware-flashed at once with mandatory VBIOS backup and verified images.

6× NVIDIA A100 PCIe 80 GB per run
Mandatory VBIOS backup pre-flash
SHA-256 verified from local NAS
Air-gapped — never pulls from internet
Per-card intake record by GPU serial, fed to test-rig chain-of-custody
NFC-H100 — H100 PCIe Firmware Intake Station
NFC-H100
APEX-GENERATED RECORD

H100 PCIe Firmware Intake Station

Six H100 cards firmware-flashed at once with mandatory VBIOS backup and verified images.

6× NVIDIA H100 PCIe 80 GB per run
Mandatory VBIOS backup pre-flash
SHA-256 verified from local NAS
Air-gapped — never pulls from internet
Per-card intake record by GPU serial, fed to test-rig chain-of-custody

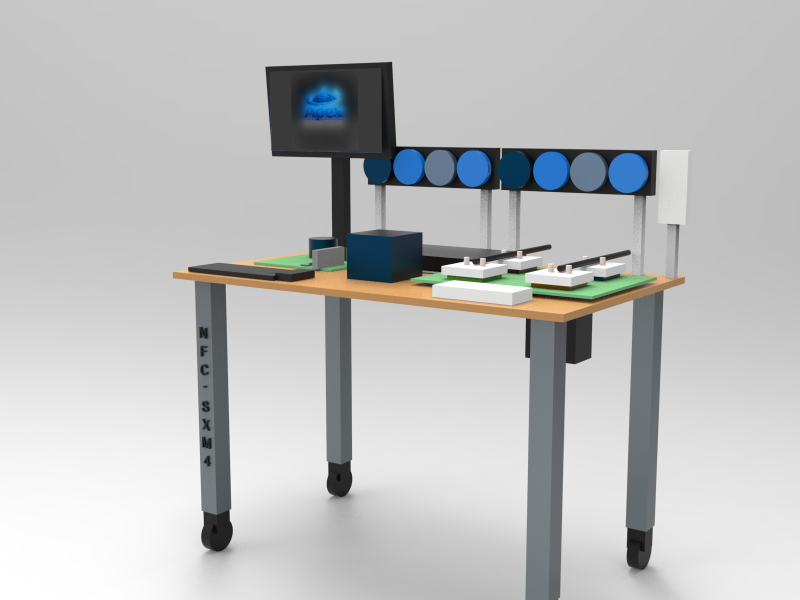

NFC-SXM4 — A100 SXM4 Firmware Intake Station
NFC-SXM4
APEX-GENERATED RECORD

A100 SXM4 Firmware Intake Station

SXM4 module firmware intake — NVLink-verified before any module is released.

HGX A100 SXM4 modules
All NVLink ports verified Active
SHA-256 verified from local NAS
Magnetic cold-plate liquid cooling
Per-module intake record by serial (firmware + NVLink status)
THE WHOLE FLEET

Nineteen machines, one row.

Drag, scroll or arrow through every machine — each one opens its full specification.

UWC-280 — Universal Wiper Cart 280
DRIVE SANITIZATION
UWC-280
280 drives at once
UWC-480 — Universal Wiper Cart 480
DRIVE SANITIZATION
UWC-480
480 drives at once
UWC-640 — Universal Wiper Cart 640
DRIVE SANITIZATION
UWC-640
640 drives at once
UWC-960 — Universal Wiper Cart 960
DRIVE SANITIZATION
UWC-960
960 drives at once
UWC-M.2 — M.2 Drive Wipe Station
DRIVE SANITIZATION
UWC-M.2
28 M.2 slots (24 NVMe + 4 SATA)
UWC-U.2 — U.2 Enterprise NVMe Wipe Station
DRIVE SANITIZATION
UWC-U.2
20 enterprise U.2 slots
UDWC — Universal Desktop Wiping Cart
ENDPOINT SANITIZATION
UDWC
15 desktops at once
ULWC — Universal Laptop Wipe Cart
ENDPOINT SANITIZATION
ULWC
15 laptops at once
UPRC — Universal Phone Reset Cart
MOBILE DEVICE RESET
UPRC
64 phones per cart
UTRC — Universal Tablet Reset Cart
MOBILE DEVICE RESET
UTRC
15 bays per rack
UIPRC — Universal Internet Phone Reset Cart
VOIP RESET
UIPRC
40 phones per batch
SRC — Server Reset Cart
SERVER / INFRASTRUCTURE
SRC
15 servers at once
UGPUTC-A100 — Universal GPU Test Cart — A100
GPU TESTING
UGPUTC-A100
6× NVIDIA A100 PCIe 80 GB
UGPUTC-H100 — Universal GPU Test Cart — H100
GPU TESTING
UGPUTC-H100
6× NVIDIA H100 PCIe 80 GB
UGPUTC-SXM4 — Universal GPU Test Cart — SXM4
GPU TESTING
UGPUTC-SXM4
HGX A100 4-GPU SXM4 baseboard
UGPUT-WC — Universal GPU Test-Wiping Cart
GPU TESTING & WIPING
UGPUT-WC
8 GPUs per bench
NFC-A100 — A100 PCIe Firmware Intake Station
FIRMWARE INTAKE
NFC-A100
6× NVIDIA A100 PCIe 80 GB per run
NFC-H100 — H100 PCIe Firmware Intake Station
FIRMWARE INTAKE
NFC-H100
6× NVIDIA H100 PCIe 80 GB per run
NFC-SXM4 — A100 SXM4 Firmware Intake Station
FIRMWARE INTAKE
NFC-SXM4
HGX A100 SXM4 modules
FIND YOUR FIT

Not sure which machines you need?

Three questions. We name the machines that match what you process, and hand the list straight to a quote.

01 · What are you retiring?
02 · Drive volume in a normal week
03 · Do you already license a wipe suite?
Pick what you’re retiring and we’ll name the machines that handle it.

Size the right configuration.

Tell us your volume and asset mix and we'll spec the machines that fit. Fleet bundles are available for all 19 systems.

Already know what you need? Start an order — purchase orders only, nothing charges until you sign the quote.
Specifications shown for reference and may vary by configuration.
